Feature:
Model: BWP
Power supply: Battery
Capacity load: 1-300t
Running speed: 0-30m/min
Wheel material: ZG55+Hydropurture
Brake principle: Electric magnetic brake
Battery maintenance: Free of maintenance
Turning type: Tuning while driving with no stop
Radar control: 3-0.3m Automatic stop for obstacles

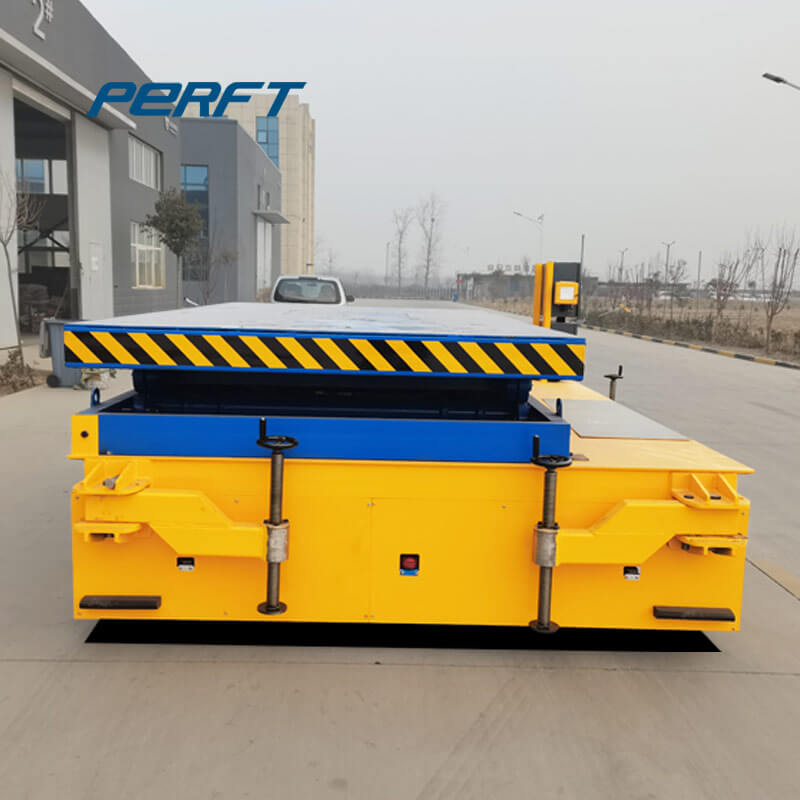

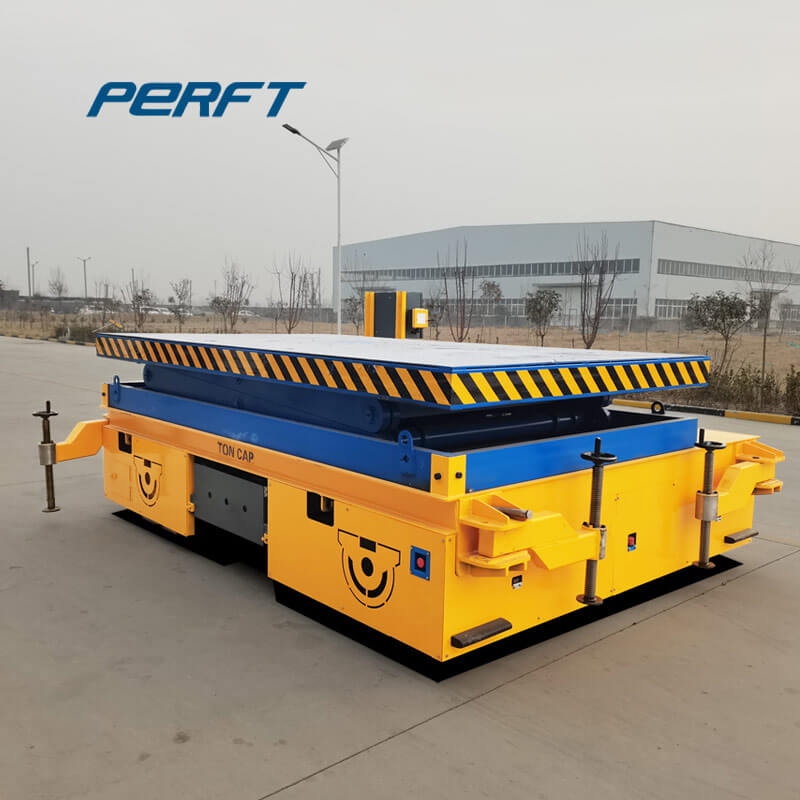

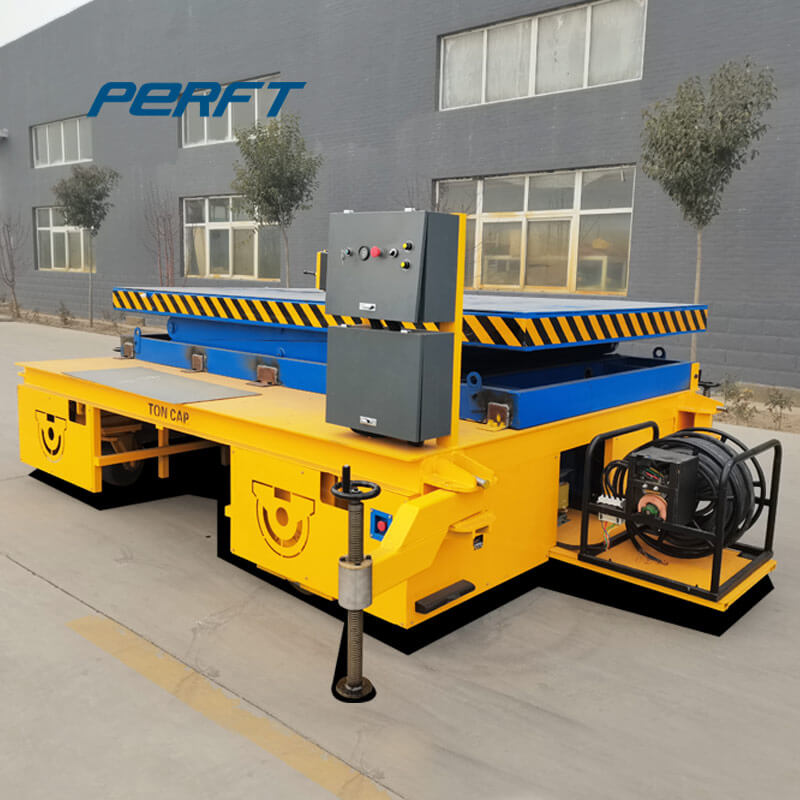

Trackless transfer platform handling vehicles are composed of the power supply, transmission mechanism, steel structure load-bearing frame, steering system, walking mechanism, control module, and fault diagnosis module.
We offer a wide range of specially designed material transfer carts to meet the unique needs of stamping and forming. These products include mold transport equipment, mold carts, and mold transfer carts, and mold trailer systems. This cart can be run on rail or concrete floors, depending on the shipping route or the customer’s project plan. For more details, you can also read our handling solution articles Trackless Transfer Cart and Trackless Transfer Carts For Sale.
| Model | BWP-2T | BWP-10T | BWP-20T | BWP-30T |
| Rated load (T) | 2 | 10 | 20 | 30 |
| Table size length(L) | 2000 | 3600 | 4000 | 4500 |
| Width(W) | 1500 | 2000 | 2200 | 2200 |
| Height(H) | 450 | 500 | 550 | 600 |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 |
| Battery Voltage(V) | 24 | 48 | 48 | 48 |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 |
