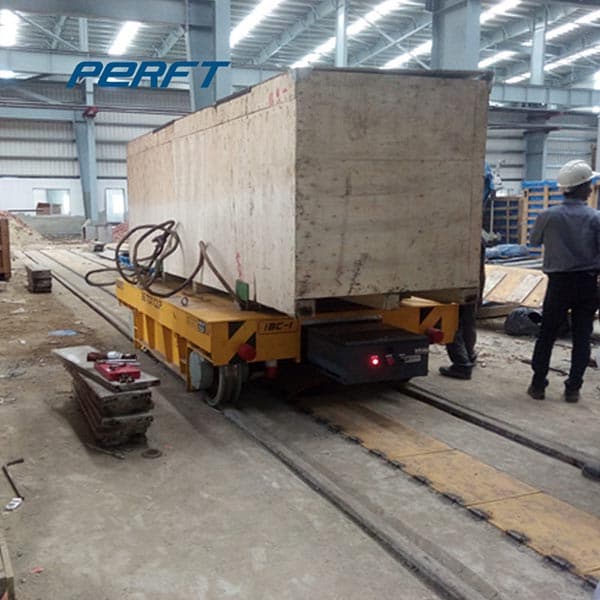

Busbar-powered transfer car is powered by the movement of the transfer car to drive the transfer car, which requires a trench on one side of the track and a safety slip wire installed in the trench.
Load capacity：1-500 Ton
Running Speed：20-30m/min
Power Supply：Busbar Power
Material: Steel coils, aluminum coils, galvanized coils, transformers, cable trays, casting parts.
Busbar Powered Transfer Cart is driven by the movement of the transfer cart to supply power to the transfer cart, which requires the opening of a trench on the side of the track and the installation of a safety slip wire in the trench, which is laid on a single surface and fixed to the ground with a hinge. When the electric rail transfer car is in operation, the cover is lifted by the trench flap device installed on the transit car, and the flap device contains the cable connected to the safety slip wire collector. The electric flat car is automatically put back to the ground after the cover is passed to ensure the ground is level. Slip wire powered rail transit car is not limited by the running distance. Suitable for harsh environments and high-temperature environments and other occasions, works with high frequency, high safety factor, and rate controllability, and is a common means of transportation when we carry out cargo handling.
Busbar Powered Transfer Cart Product Advantages
Loading Capacity Up To 500 Tons
Automatic Or Manual Control
Driving Speed Up To 30 M/Min.
Tailor-Made Design
Busbar Energy Supply
Suitable For Outdoor And Indoor Operation
CE-Certified
Ip Protection Class Suitable For Work Environment
Busbar Powered Transfer Cart Features
Busbar powered transfer cart allows for the safe transfer of the vehicle to the desired station without energy interruption thanks to the energy. Busbar powered transfer cart receives from the highly installed busbar system. Busbar Powered Transfer Cart is compatible with the change in settlement as Busbar Powered Transfer Cart is highly safe. Busbar Powered Transfer Cart has several advantages like low cost, high performance and fast mounting. Busbar powered transfer carts can be used when the operation area is suitable for busbar mounting.
Application for Customized Sliding Line Industrial Transfer Cart
Environmental requirements
Temperature: -20°C to 80°C
Relative humidity: ≤ 70%.
Environmental PH: Work under neutral or neutral conditions
Air purity: Non-corrosive suspended solids, no flammable explosive gases
Energization rate: 25
Application Location
Inclination: ≤2.8°
Smoothness: ±2cm/m
Cleanliness: Site requirements include no visible debris, no raised defects greater than 1 cm
Not suitable for special environments such as flammable, explosive, or dust contamination.
Suitable for metallurgical, coal, mechanical and electrical, heavy industry, shipbuilding, light industry, high work intensity, indoor dust-free, water-free environments.
Technical Parameters of Busbar Powered Transfer Cart
Model
BHX2t
BHX5t
BHX10t
BHX20t
BHX50t
BHX80t
BHX100t
Rated Load (t)
2
5
10
20
50
80
100
Table Size (mm)Length
2000
3500
3600
4000
5500
6000
6500
Width
1500
2000
2000
2200
2500
2600
2800
Height
450
450
500
550
650
800
850
Wheel Base (mm)
1200
2500
2600
2800
4200
4700
4900
Rail Inner Gauge (mm)
1200
1435
1435
1435
1435
1800
2000
Wheel Diameter (mm)
Ф270
Ф270
Ф300
Ф350
Ф500
Ф600
Ф600
Wheel Quantity
4
4
4
4
4
4
4
Ground Clearance (mm)
50
50
50
50
50
75
75
Running Speed (m/min)
0-25
0-25
0-25
0-20
0-20
0-20
0-20
Motor Power (Kw)
0.8
0.8
1.5
2.5
5.5
7.5
11
Transformer Power(KVA)
3
3
5
6.8
10
20
30
Transformer Quantity
1
1
1
1
1
1
1
Running Distance (m)
70
70
70
70
50
50
50
Max Wheel Load( kn)
14.4
25.8
42.6
77.7
174
278.4
343.8
Recommended Rail Model
P15
P18
P18
P24
P43
P50
QU100
Parameters of Busbar Powered Transfer Cart
Customer Case for Busbar Power Transfer Carts
Busbar power transfer cart for coil handling 20 ton Bangladesh
Our customer from Bangladeshi had ordered 20 tons busbar powered railtransfer cart for his coil handling. The robust design ensures efficient material handling, and the inclusion of a V frame adds versatility for coil handling. The control options include both button control and remote control, providing flexibility and ease of operation. With a commitment to quality and innovation, until now, our customer is still satisfied with our transfer cart and our service and then ordered other two transfer carts to deliver a reliable and high-performance solution for industrial material transport needs.
Busbar power rail transfer cart 20 ton
