Electric rail transfer cart is controlled by AC control system to control the AC metallurgical motor, so that the flat car can start, stop, forward, backward and so on. It is suitable for large load capacity and medium and long distance transportation.
Load Capacity: 1-300 Ton
Running Speed: 20-30m/min
Power Supply: Battery/Busbar/Cable Reel
Material: Steel coils, aluminum coils, galvanized coils, transformers, cable trays, casting parts, heavy loads.
Electric Transfer Cart is controlled by AC mechanical motor through an AC control system to start, stop, move forward, backward, etc. It can be used in S-type track, curved track, and high-temperature occasions, the flat car can be equipped with a hydraulic lifting system, lifting system, with security and mobility flexibility, high requirements for track laying (need insulation treatment track), suitable for large load capacity, medium, and long-distance transport occasions. Widely used in machine building and metallurgical plants, as a workshop with the crane to transport heavy objects across the use.
Perfect Transfer Cart can be customized according to the needs of the users of the rail flat car, our enterprise can customize design solutions and order a variety of models and specifications of rail flat car accessories for the majority of people to upgrade, dismantle or update the rail flat car, reduce the cost of customer investment in the project so that Perfect Transfer Cart becomes a stronger choice for you.

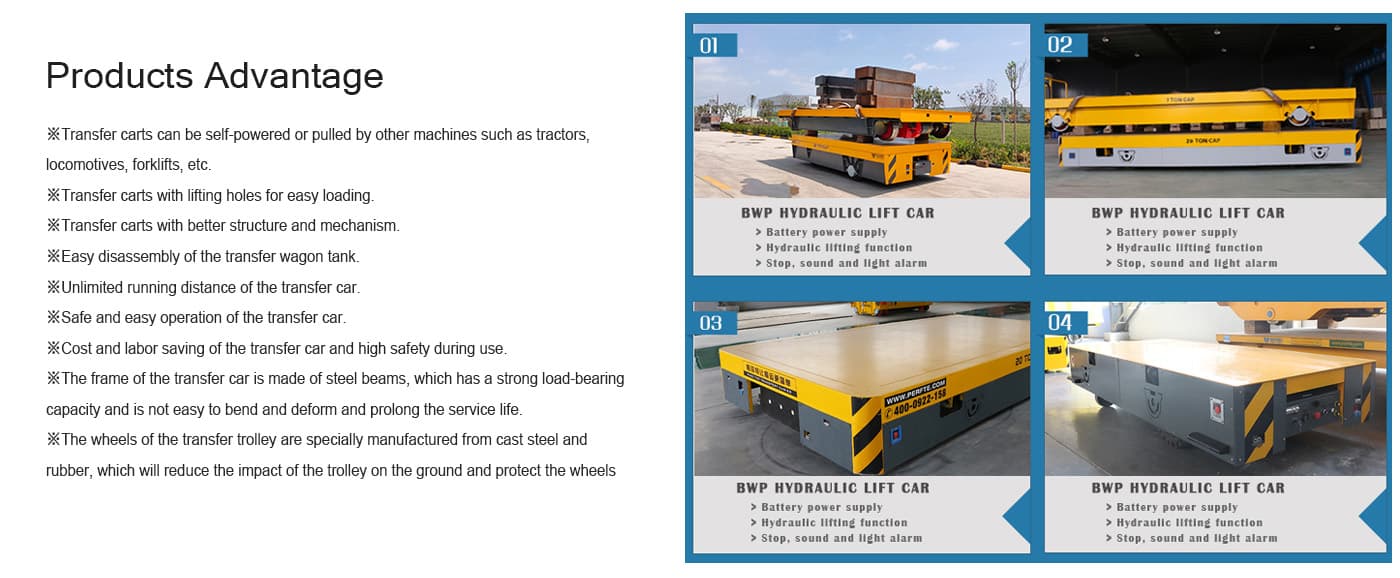

Benefits Of Electric Rail Transfer Carts
Fixed Route Operation Is Easy
Safety and Flexibility
Long Working Life
High Frequency Use
Suitable For Heavy Loads
Easy maintenance
Handling More Safely
More Stable Handling
Technical Parameters of Battery Rail Transfer Carts
Model
BXC-2t
BXC-20t
BXC-50t
BXC-100t
BXC-150t
Rated Load(t)
2
20
50
100
150
Length(L)
2000
4000
5500
6500
10000
Width(W)
1500
2200
2500
2800
3000
Height(H)
450
550
650
900
1200
Wheel Base(mm)
1200
2800
4200
4900
7000
Rail Inner Gauge(mm)
1200
1435
1435
200
2000
Wheel Diameter (mm)
270
350
500
600
600
Running Speed (m/min)
0-25
0-20
0-20
0-20
0-18
Motor Power(kW)
1
2.2
5
10
15
Battery Capacity
180
180
330
440
600
Battery Voltage
24
48
48
72
72
Running Time When Full Load
4.32
4
3.3
3.2
2.9
Running Distance for One Charge(km)
6.5
4.8
4
3.8
3.2
Recommended Rail Model
P15
P24
P43
QU100
QU100
Parameters of Electric Rail Transfer Carts
Electric Rail Transfer Cart Product Function
1. Load transport: Electric Rail Transfer Carts are designed for transport, so the primary function is transportation.
2. Lifting: Electric Rail Transfer Carts can be added with hydraulic and mechanical lifting devices according to the customer’s needs.
lifting devices can be added to Electric Rail Transfer Carts according to customers’ needs to achieve lifting function on the basis of the original one.
3. Side-turning: Electric Rail Transfer Carts can be added with hydraulic and mechanical devices according to customers’ needs.
side flip device, on the original basis to achieve the side flip function.
4. Table rolling: Electric Rail Transfer Carts can add rollers, rollers, and other devices according to the customer’s needs to achieve the side turning function on the original basis.
The electric rail transfer carts can add rollers and other devices according to the customer’s needs to achieve the function of smooth movement of workpieces.
5. Other functions: The company can customize and develop the functions required by customers.
Testing of Electric Rail Transfer Cart For The Metal Industry Using
