Low Voltage Powered Transfer Trolley is more suitable for handling various industrial heavy loads, easy to operate and maintain, and almost maintenance-free at a later stage, the price of Low Voltage Powered Transfer Trolley is relatively more competitive.
The working principle of the low voltage rail powered electric transfer cart is to reduce the voltage of the 380V power supply (three-phase or single-phase) to a safe voltage of 36V through the ground control step-down system. Provide power to the conductive rail (the conductive rail doubles as the running rail transfer cart), and the low voltage power is sent to the step-up transformer on the trolley through the conductive device of the flat car, and the voltage is boosted to 380V to drive the three-phase or single-phase capacitor motor to drive transfer cart runs. You can also read another handling solution article about Low Voltage Power Rail Transfer Cart For Steel Tube Dominican.
Low Voltage Rail Electric Transfer Cart Advantage
Safe: no cables, anti-scald, anti-smashed
Easy to operate; remote control and automation
Can drive on curves and roundabouts
No limit on running distance
Low cost
Low Voltage Powered Transfer Trolley is powered by low voltage electricity from railways, the kind of transfer cart is one of the most convenient and it often can be widely used in the industrial field and so on. Of course, compared to other transfer carts, its main features are as follows, its rails are insulated from the ground, and its wheels are insulated from the ground, so don’t others. It is the advantage that the flat cart has, why we design is that it’s convenient (only rails needed) and its simple operation.
The Perfect transfer cart company has a professional team and utilizes more advanced techniques to make it, and it has been a long year to manufacture it attentively. Simultaneously, it will be easier and more flexible. For other rail transfer carts from Perfect, you can also get batter power, cable power and busbar power motorized transfer carts.
Low Voltage Powered Transfer Trolley Parameters
Model
BDGS-2t
BDGS-5t
BDGS-10t
BDGS-16t
BDGS-20t
BDGS-25t
BDGS-30t
BDGS-40t
BDGS-50t
BDGS-63t
BDGS-80t
BDGS-100t
BDGS-150t
Rated Load (t)
2
5
10
16
20
25
30
40
50
63
80
100
150
Table Size (mm)Length
2000
3500
3600
4000
4000
4500
4500
5000
5500
5600
6000
6500
10000
Width
1500
2000
2000
2000
2200
2200
2200
2500
2500
2500
2600
2800
3000
Height
450
450
500
500
550
600
600
650
650
750
800
850
1200
Wheel Base (mm)
1200
2500
2600
2800
2800
3200
3200
3800
4200
4300
4700
4900
7000
Rail Inner Gauge (mm)
1200
1435
1435
1435
1435
1435
1435
1435
1435
1435
1800
2000
2000
Wheel Diameter (mm)
Ф270
Ф270
Ф300
Ф350
Ф350
Ф400
Ф400
Ф500
Ф500
Ф600
Ф600
Ф600
Ф600
Wheel Quantity
4
4
4
4
4
4
4
4
4
4
4
4
8
Ground Clearance (mm)
50
50
50
50
50
50
50
50
50
75
75
75
75
Running Speed (m/min)
0-25
0-25
0-25
0-20
0-20
0-20
0-20
0-20
0-20
0-20
0-20
0-20
0-18
Motor Power (Kw)
0.8
0.8
1.5
2.2
2.5
3
4
5.5
5.5
7.5
7.5
11
15
Transformer Power(KVA)
3
3
5
6.8
6.8
6.8
10
10
10
20
20
30
30
Transformer Quantity
1
1
1
1
1
1
1
1
1
1
1
1
1
Running Distance (m)
70
70
70
70
70
70
70
60
50
50
50
50
50
Max Wheel Load( kn)
14.4
25.8
42.6
64.5
77.7
94.5
110.4
142.8
174
221.4
278.4
343.8
265.2
Recommended Rail Model
P15
P18
P18
P24
P24
P38
P38
P43
P43
P50
P50
QU100
QU100

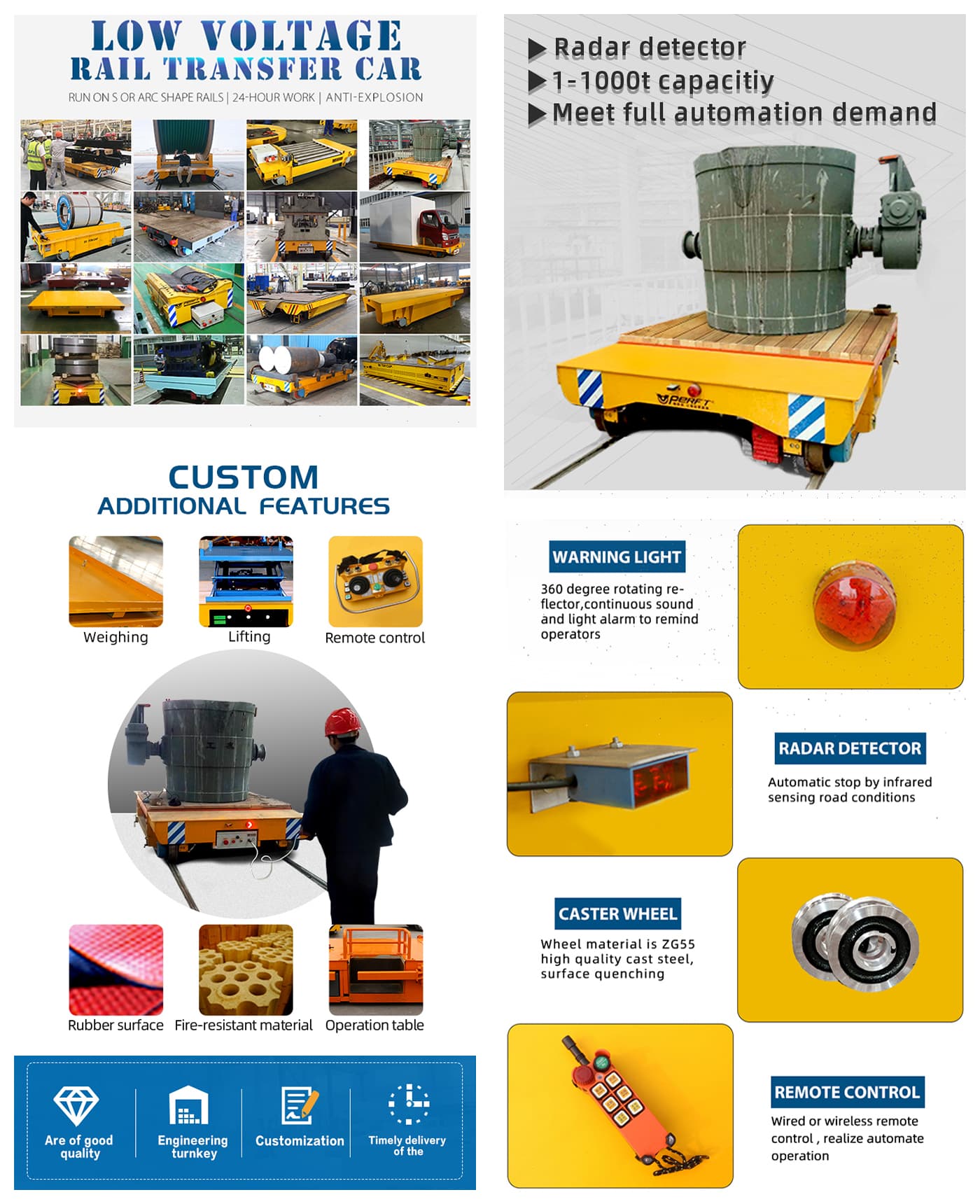

Low Voltage Powered Transfer Trolley Features
Anti-high temperature
Safe devices are installed(alarm light)
Customization can be supported
If large capacity, the dual drive can be installed, and the largest capacity can reach 300T
China manufacturing
Steel Box Beam Structure About Body
Turning can be realized
Apply to various occasions
Safety, flexibility, stable start, big starting torque, small capacity to the gear gearing
Low voltage, long lifetime
The running distance is not limited.
When the running distance is more than 70m, it is better to increase the transformers to make up for the voltage which has been lowed.
